   Model No.

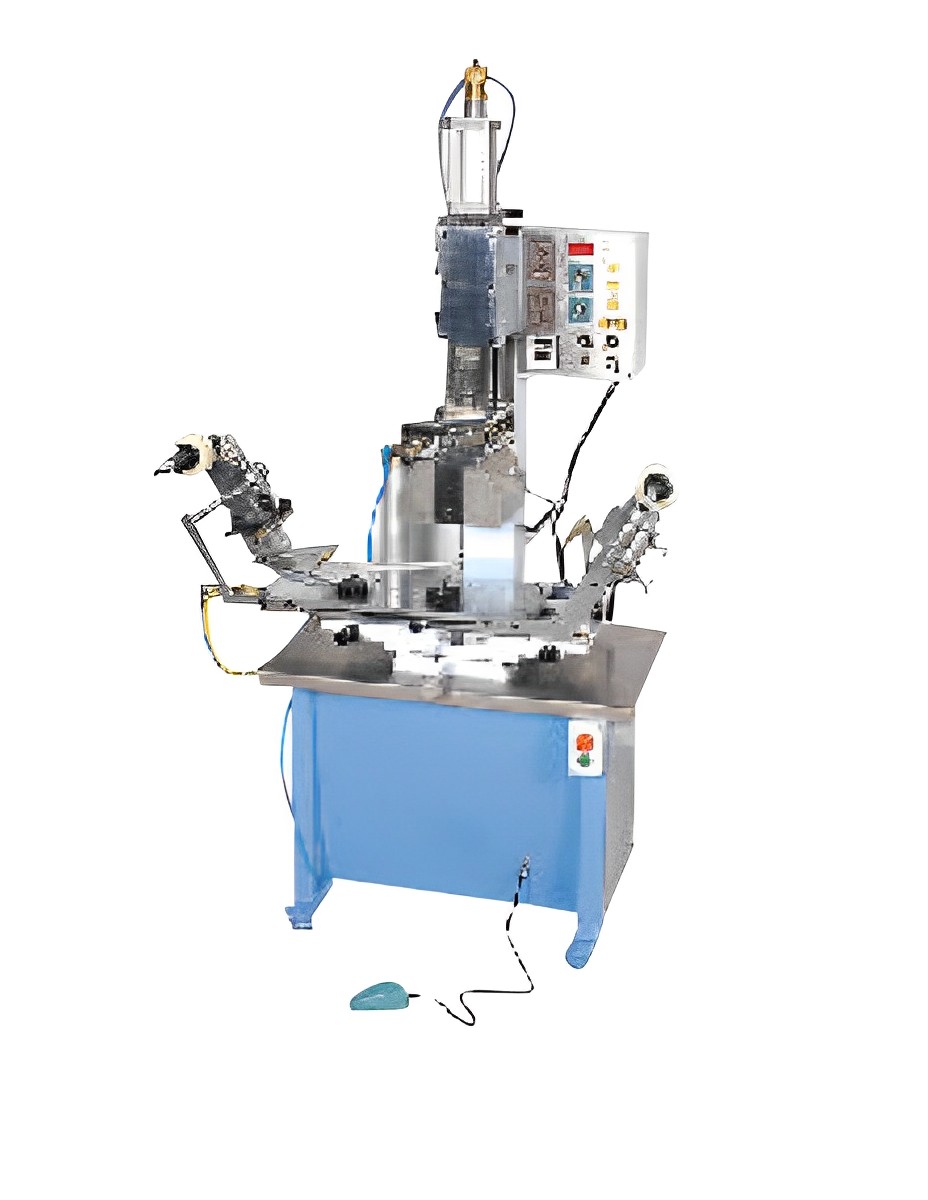

   HSM160A
   Max. stamping area
   230mmx 120mm
   Max. stamping diamenter
   160mm
   Max. x-axis stroke of heat plate
   250mm
   Max. y-axis stroke of heat plate
   100mm
   Max. speed
   5-10 cycles per min.
   Air pressure
   0.5-0.65 Mpa/cm
   Power
   220V 1 Phase 1600W 50/60Hz
   Machine dimension
   1280mm x 640mmx 1850mm
   Net weight
   278kg
