Model no.

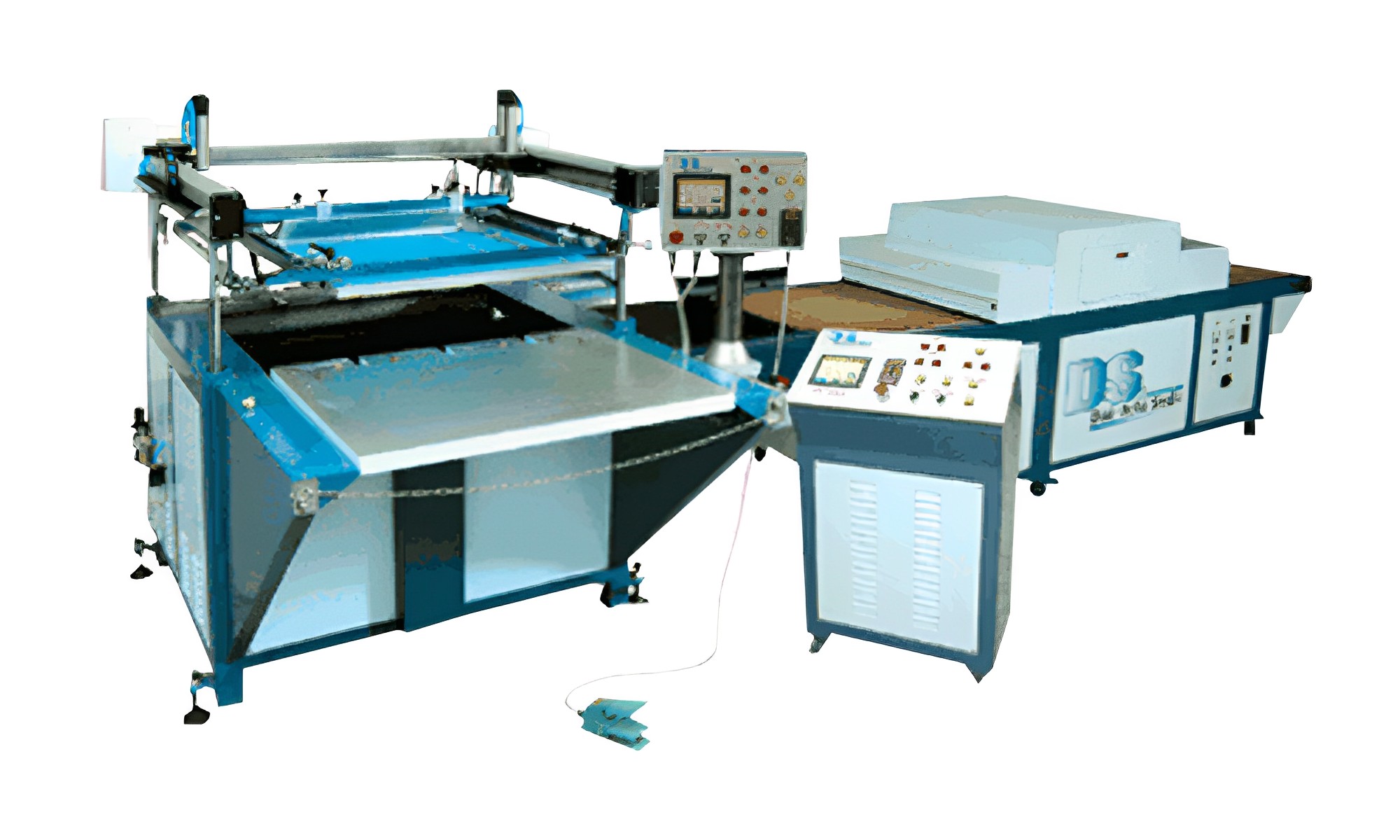

   DSAM - 6090
   Max. printing area
   600mm x 900mm
   Size of printing table
   860mm x 1050mm
   Max. frame size
   900mm x 1050mm
   Thickness of printing matter
   10mm
   Max. printing speed
   20pcs/min
   Power
   380v 3 phase 2800W
   Air pressure
   0.5-0.65 Mpa/cm2
   Machine dimension
   2280mm x 2310mm x 1500mm
   Packing measurement
   2400mm x 1720mm x 1800mm
   Net weight
   980kg
   Gross weight    1213kg
Drying tunnel is optional & specifications are based on customers' requirement.
