Model no.

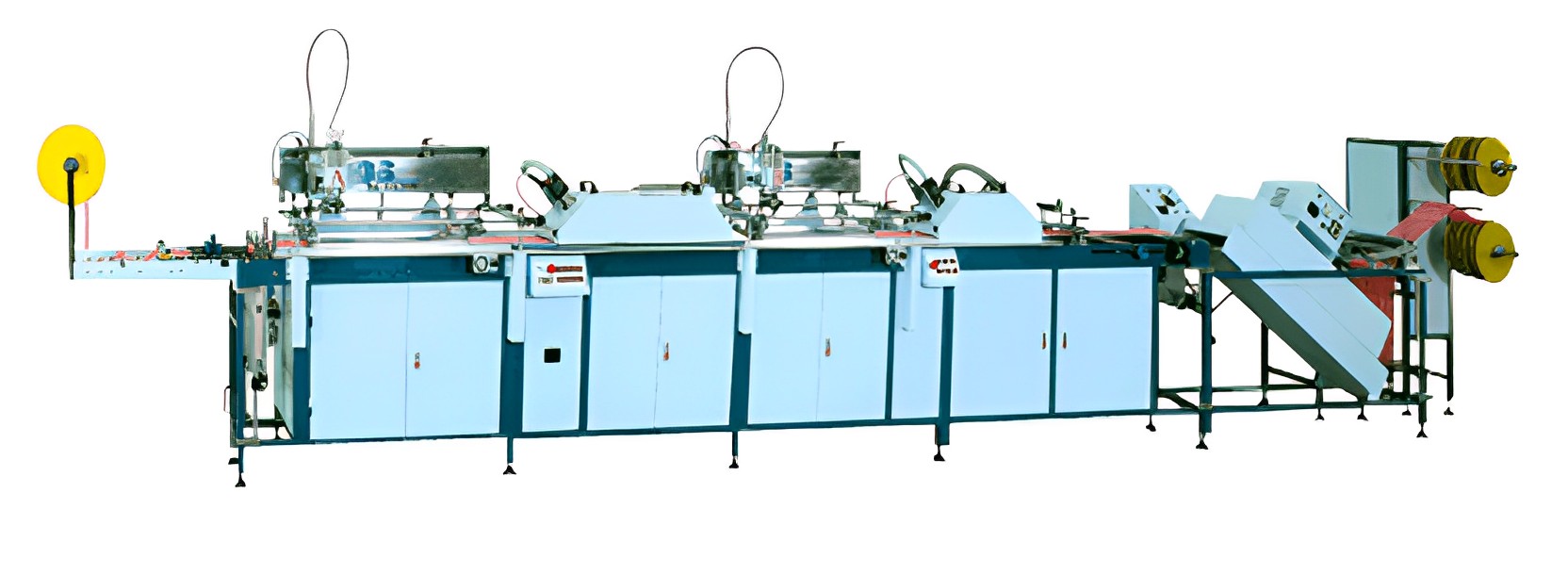

   DSB2 - 2045
   No. of color
   2
   Max. printing area
   450x150mm
   Max. frame size
   680x300mm
   Max. printing speed
   25-35 Cycles/min
   Power
   380v 3 phase 14300W
   Air pressure
   0.5-0.65 Mpa/cm2
   Air consumption
   3.1 L/min
   Machine dimension
   8550mm x 720mm x 1730mm
   Packing measurement
  * 2410mm x 900mm x 1790mm
  * 1470mm x 850mm x 1590mm
  * 1430mm x 900mm x 1790mm
  * 1860mm x 950mm x 1590mm
  * 2400mm x 860mm x 1610mm
   Net weight
   1741kg
   Gross weight
   2333kg
