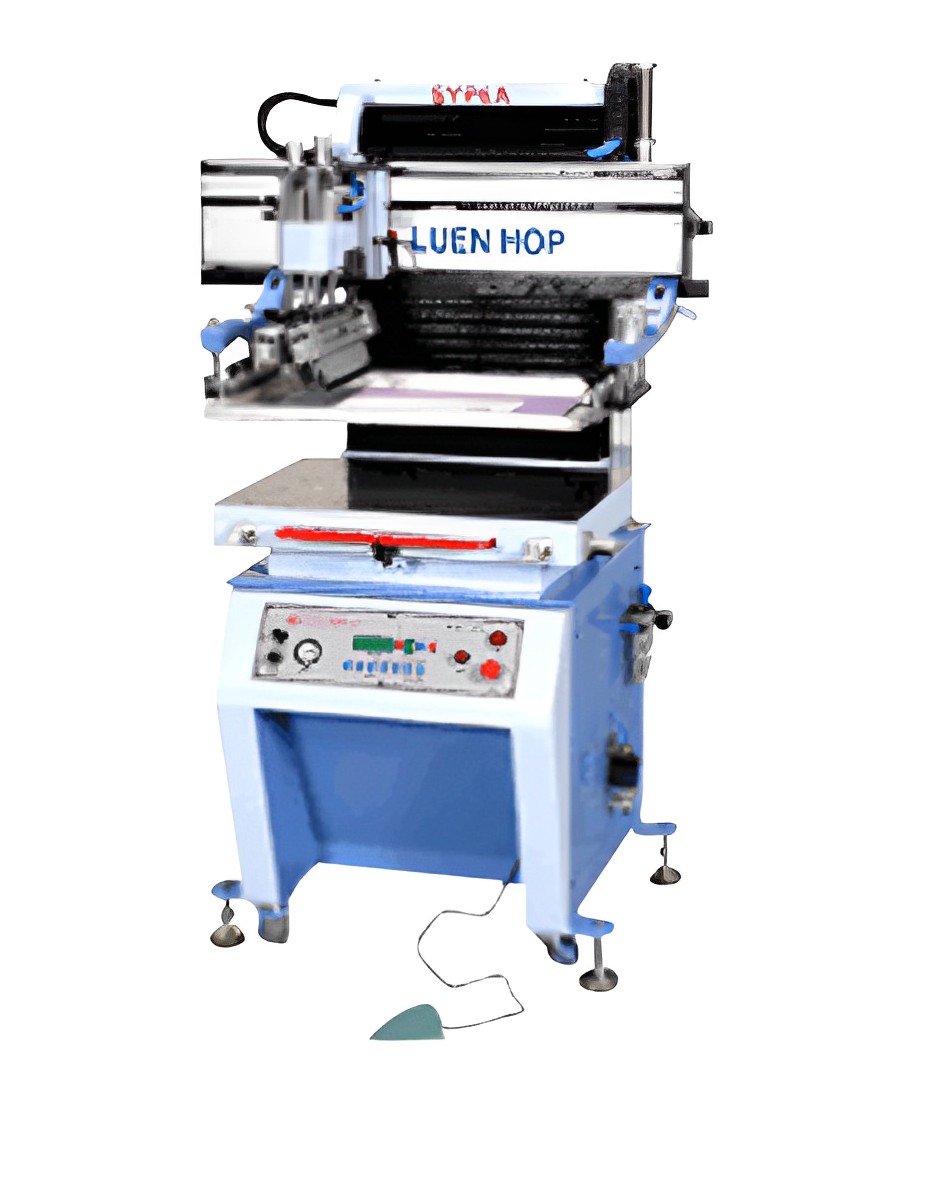

Model No.    SYP6A
   Max. printing area    650x450mm
   Size of printing table    700x500mm
   Max. frame size    870x550mm
   Thickness of printing matter    0-90mm
   Max. printing speed    12 pcs/min
   Power    220v 1 phase 400W
   Air pressure    0.5-0.65 Mpa/cm2
   Air consumption    16 L/min
   Air compressor    3hp
   Machine dimension    1080x950x1660mm
   Packing measurement    1260x1130x1900mm
   Net weight    313kg
   Gross weight    424kg
