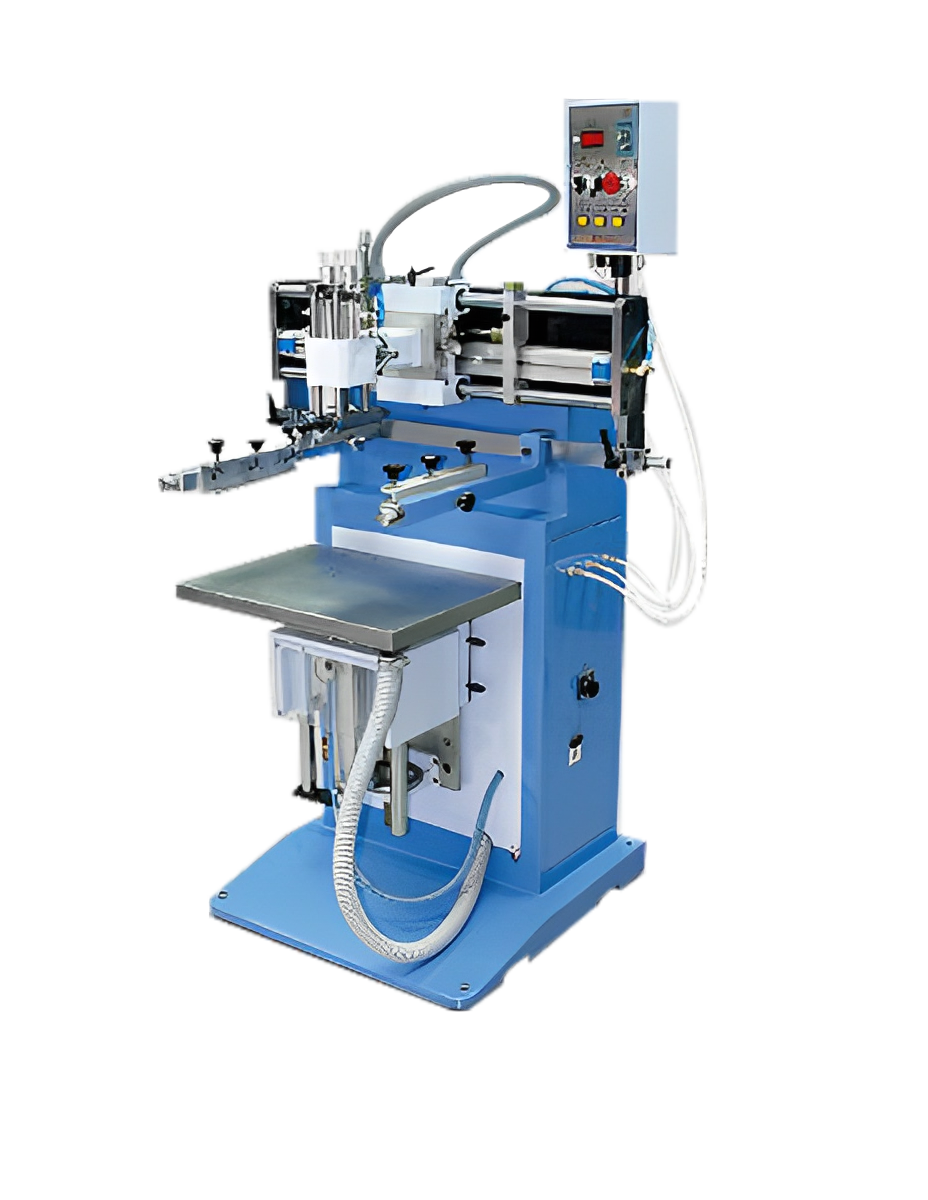

Model No.    SYP6C
   Max. printing area    450x330mm
   Size of printing table    500x380mm
   Max. frame size    650x450mm
   Thickness of printing matter    0-150mm
   Max. printing speed    16 pcs/min
   Power    220v 1 phase 400W
   Air pressure    0.5-0.65 Mpa/cm2
   Air consumption    12 L/min
   Air compressor    3hp
   Machine dimension    750x930x1350mm
   Packing measurement    930x1110x1590mm
   Net weight    183kg
   Gross weight    263kg
