Model No.

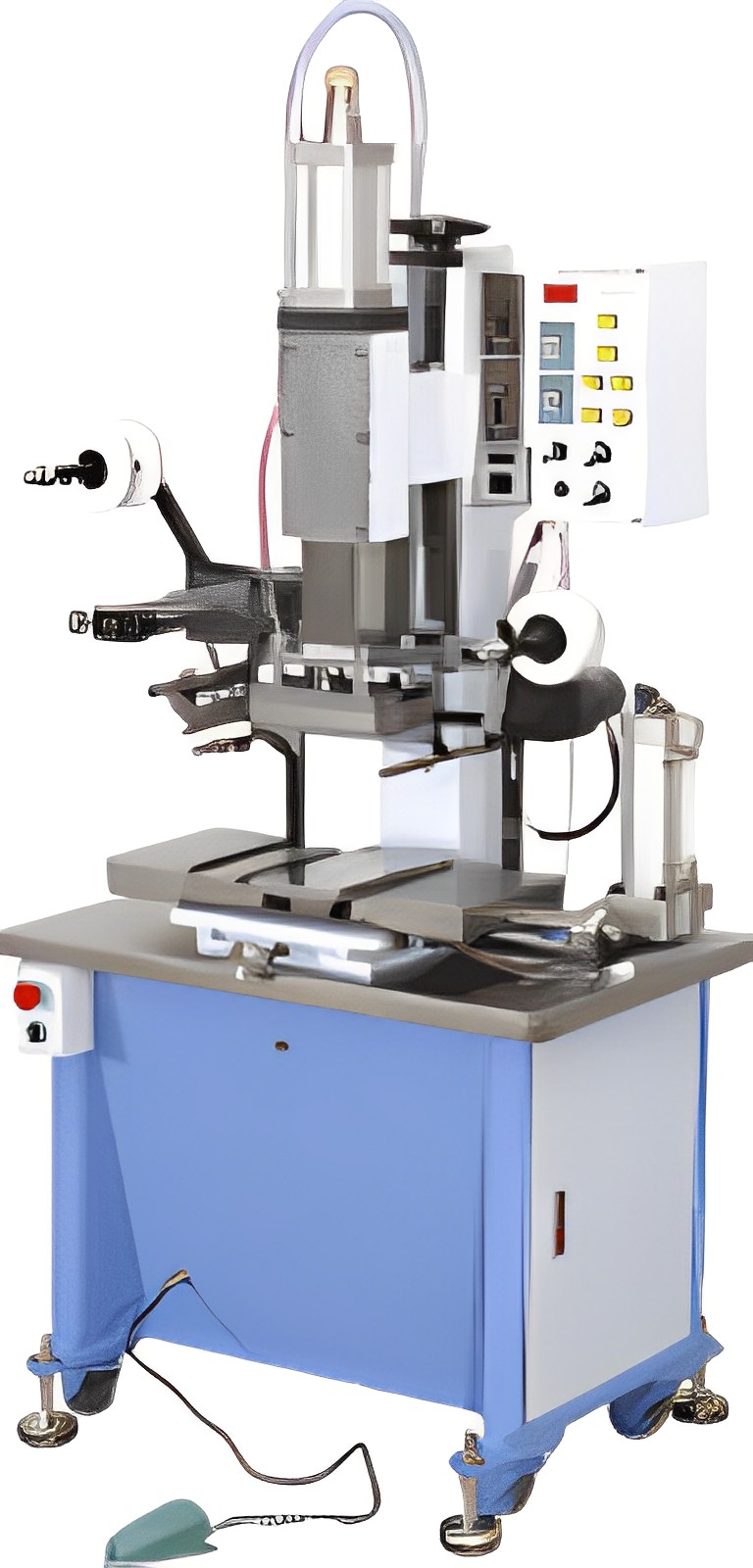

   HSC160 Flat bed hot stamping machine
   Max. stamping area
   100mm x 150mm
   Max. y-axis stroke of heat plate
   100mm
   Max. speed
   15-20 cycles per min.
   Air pressure
   0.5-0.65 Mpa/cm
   Power
   220v 1phase 550W  50/60Hz
   Machine dimension
   860mm x 650mm x 1890mm
   Packing dimension
   1030mm x 830mm x 2130mm
   Net weight
   227kg
   Gross weight
   320kg
