Model No.

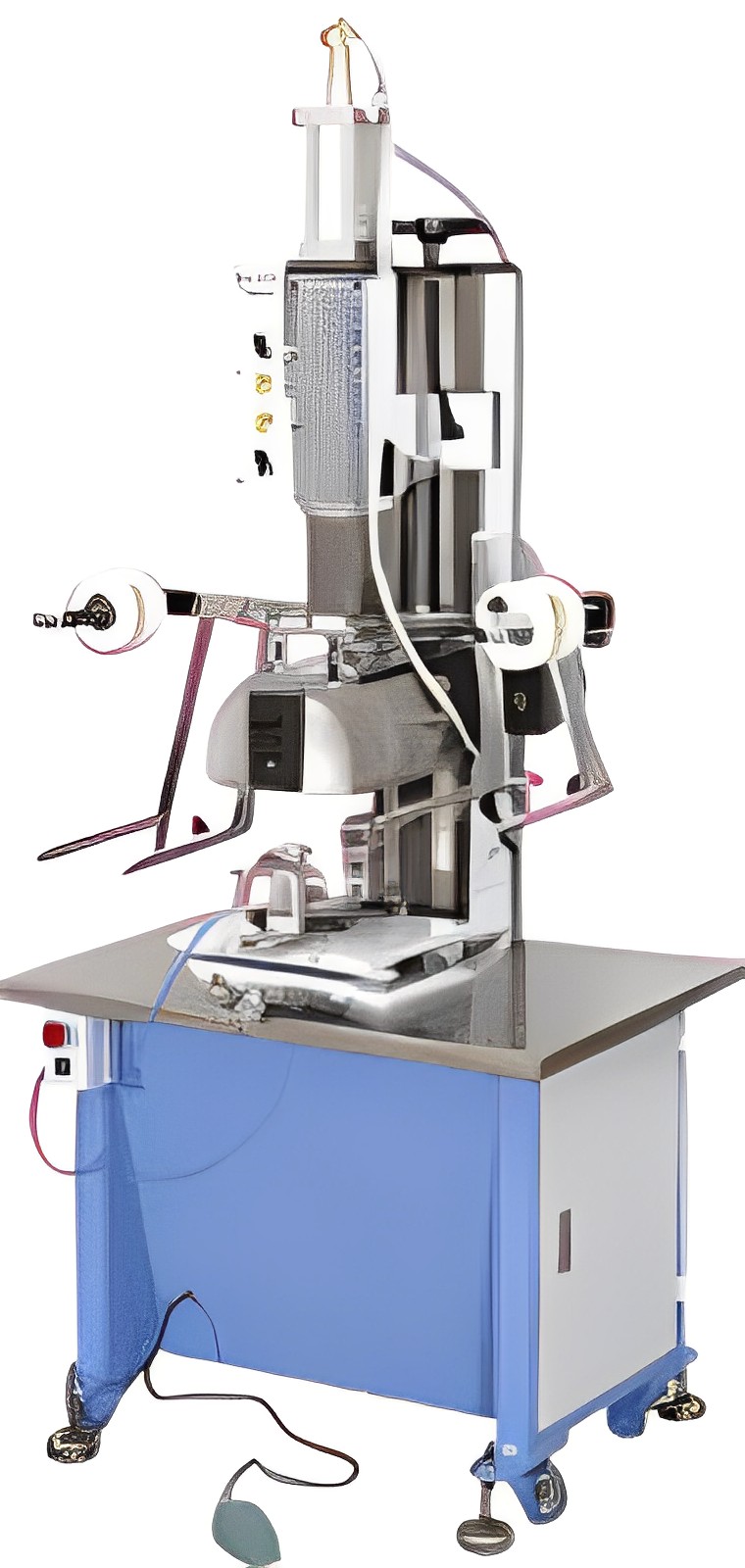

   HSM160 Multi-purpose hot stamping machine
   Max. stamping area
   100mm x 150mm
   Max. stamping diamenter
   160mm
   Max. x-axis stroke of heat plate
   150mm
   Max. y-axis stroke of heat plate
   80mm
   Max. speed
   8-12 cycles per min.
   Air pressure
   0.5-0.65 Mpa/cm
   Power
   220v 1phase 1600W  50/60Hz
   Machine dimension
   860mm x 720mm x 1780mm
   Packing dimension
   1040 x 900 x 2020mm
   Net weight
   242kg
   Gross weight
   327kg
