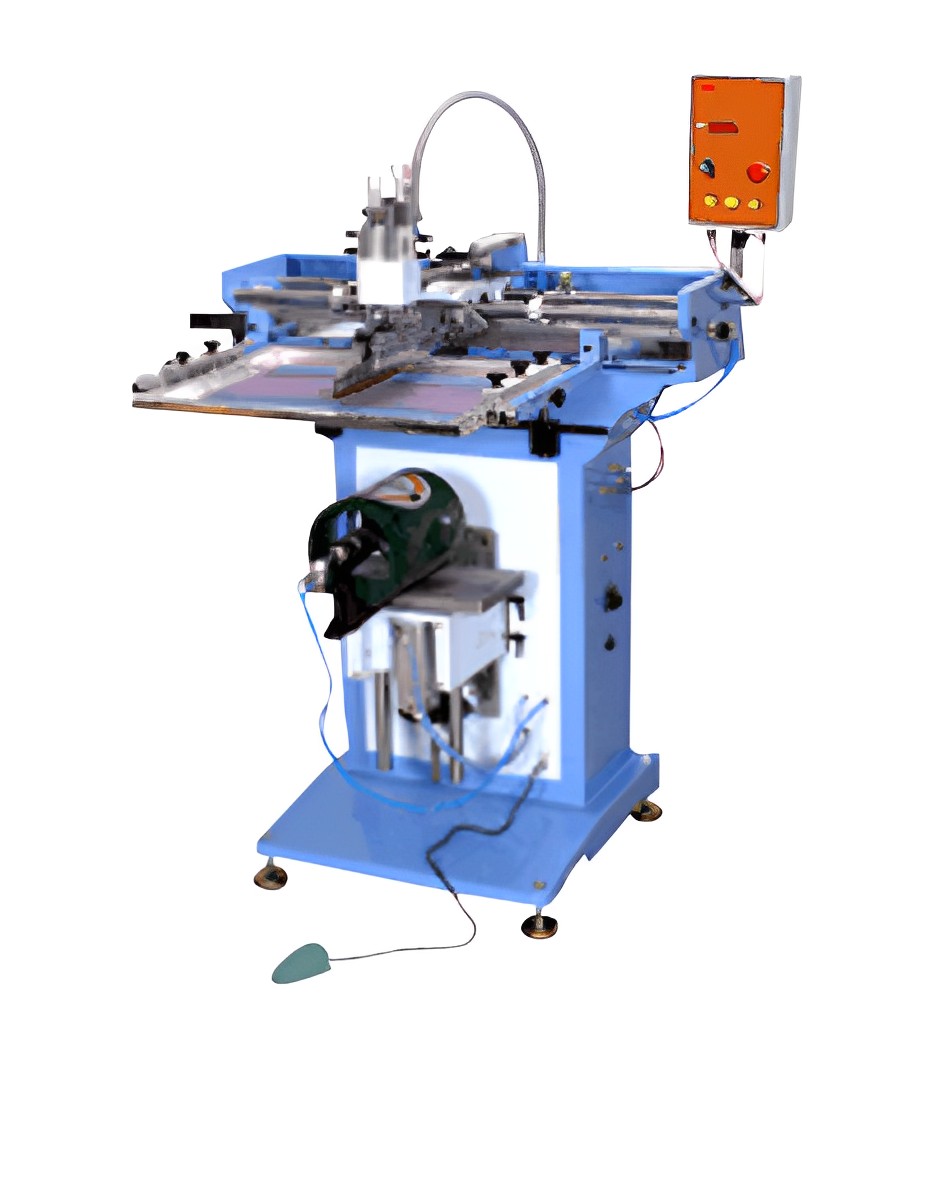

Model No.
   SYK1B
   Max. printing area
   200x300mm(H)
   Max. frame size
   350x880mm
   Max. printing speed
   9 pcs/min
   Power
   220v 1phase 15W
   Air pressure
   0.5-0.65 Mpa/cm2
   Air consumption
   7 L/min
   Air compressor
   3hp
   Machine dimension
   860x1180x1550mm
   Packing measurement
   1040x1360x1600mm
   Net weight
   170kg
   Gross weight
   270kg
