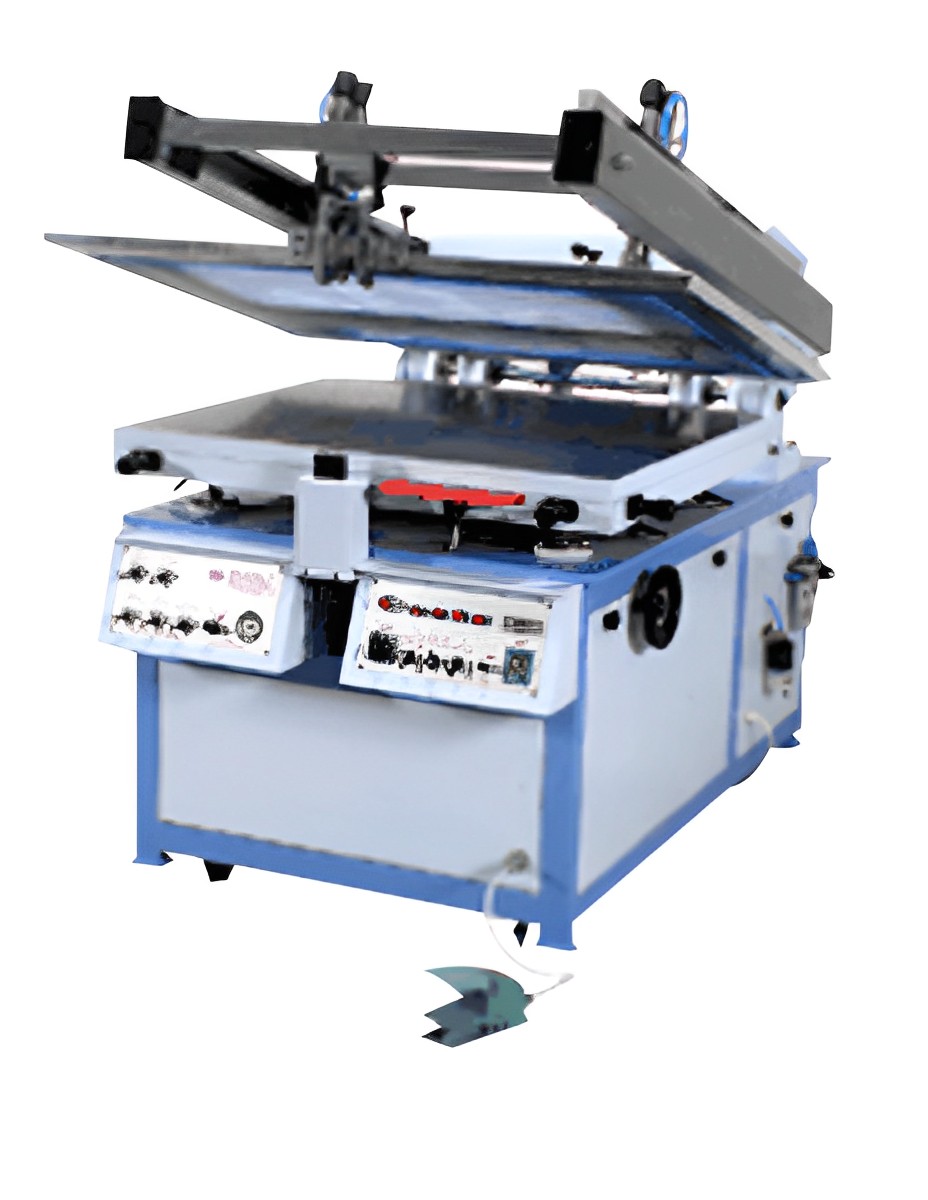

Model No.    LHS6090
   Max. printing area    900x600mm
   Size of printing table    1000x835mm
   Max. frame size    1000x940mm
   Min. frame size    800x800mm
   Thickness of printing matter    0-30mm
   Max. printing speed    13 pcs/min
   Power    380v 3 phase 1300W
   Air pressure    0.5-0.65 Mpa/cm2
   Air consumption    3.8 L/min
   Air compressor    3hp
   Machine dimension    1580x1100x1400mm
   Packing measurement    1760x1280x1640mm
   Net weight    610kg
   Gross weight    751kg
