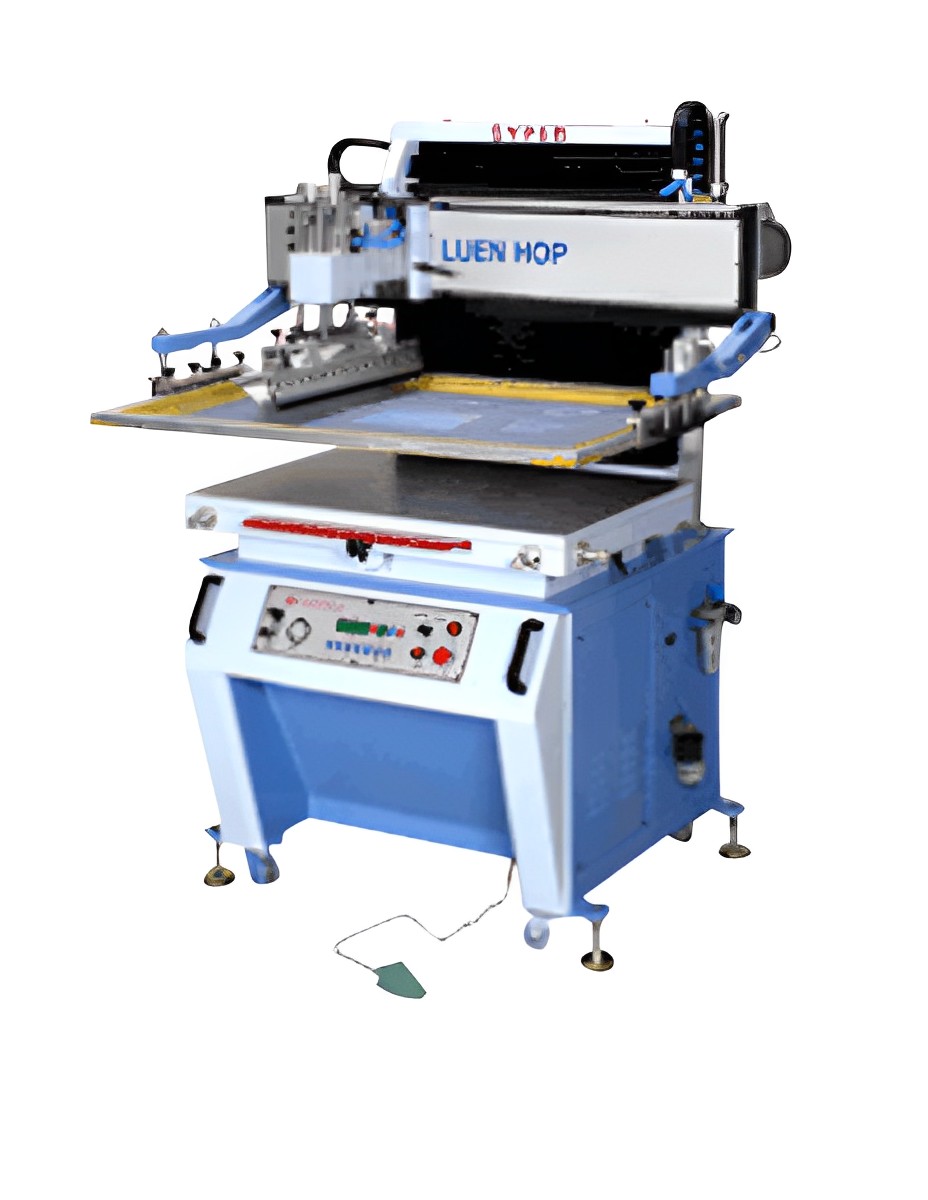

Model No.    SYP6B
   Max. printing area    850x550mm
   Size of printing table    900x600mm
   Max. frame size    1070x650mm
   Thickness of printing matter    0-90mm
   Max. printing speed    12 pcs/min
   Power    220v 1 phase 400W
   Air pressure    0.5-0.65 Mpa/cm2
   Air consumption    23 L/min
   Air compressor    3hp
   Machine dimension    1100x1280x1660mm
   Packing measurement    1280x1460x1900mm
   Net weight    395kg
   Gross weight    529kg
