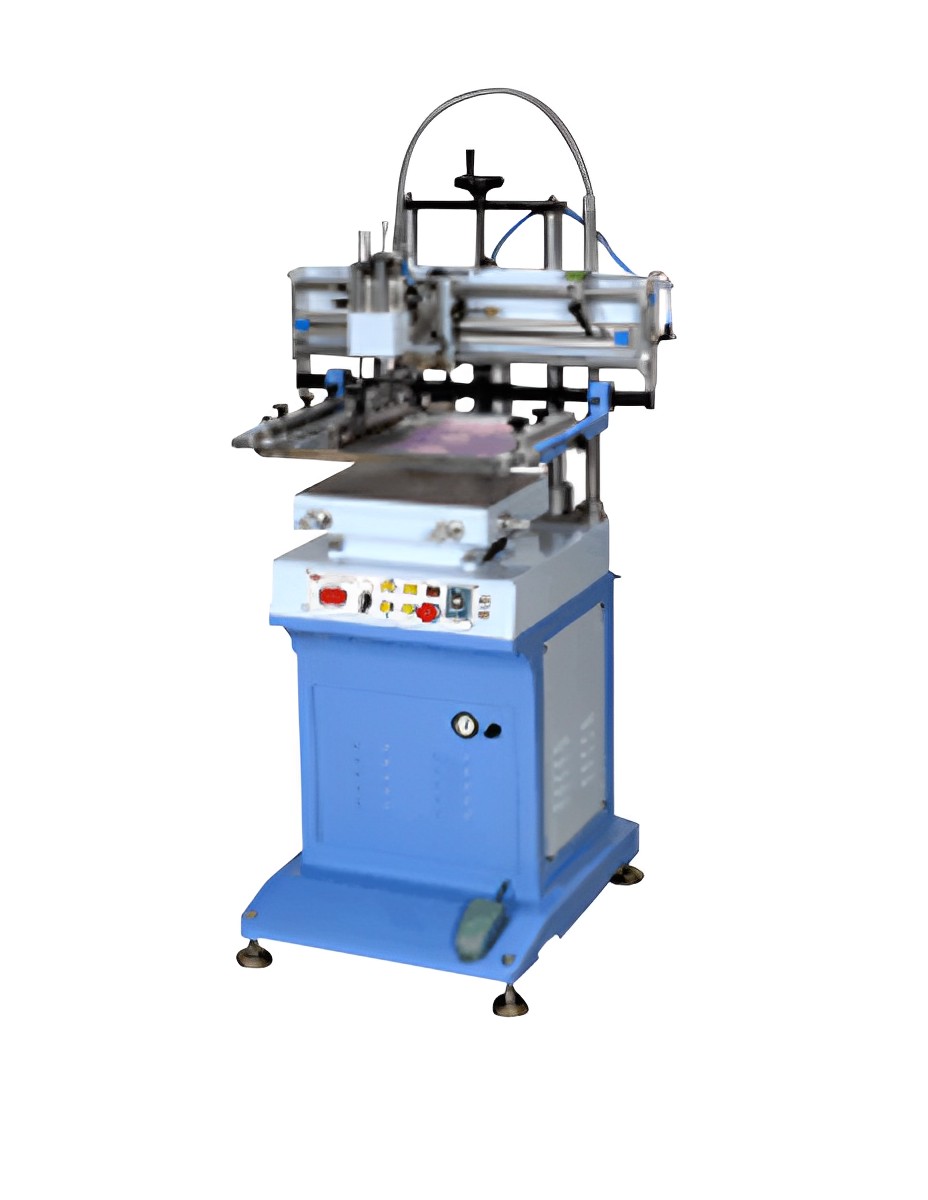

Model No.    SYK1D
   Max. printing area (for round items)    150x200mm(H)
   Max. printing area (for flat items)    250x350mm
   Size of printing table    300x400mm
   Max. frame size    400x630mm
   Max. printing speed    13 pcs/min
   Power    220v 410W
   Air pressure    0.5-0.65 Mpa/cm2
   Air consumption    6 L/min
   Air compressor    3hp
   Machine dimension    780x830x1500mm
   Packing measurement     1210x1160x1780mm
   Net weight    246kg
   Gross weight    376kg
