Model No.

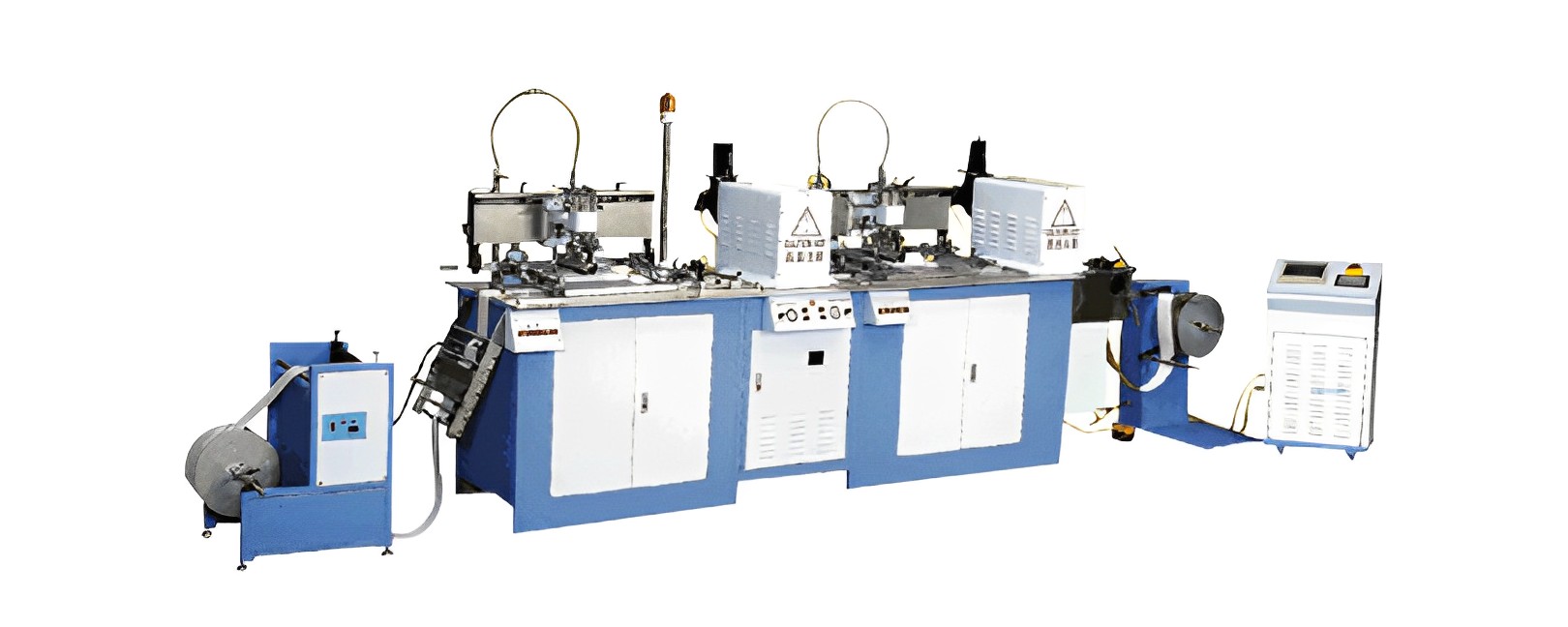

   SYP5-2 (UV)
   Max. printing area
   220x250mm
   Size of printing table
   830x380mm/880x380mm
   Max. frame size
   580x380mm
   Max. printing speed
   20 pcs/min
   Power
   380v 3 phase 7500W
   Air pressure
   0.5-0.65 Mpa/cm2
   Air consumption
   18 L/min
   Machine dimension
   3420x900x1500mm
   Packing measurement
   (1) 1910x1080x1740mm
   Packing measurement
   (2) 1910x1010x1740mm
   Net weight
   1000kg
   Gross weight
   1502kg
